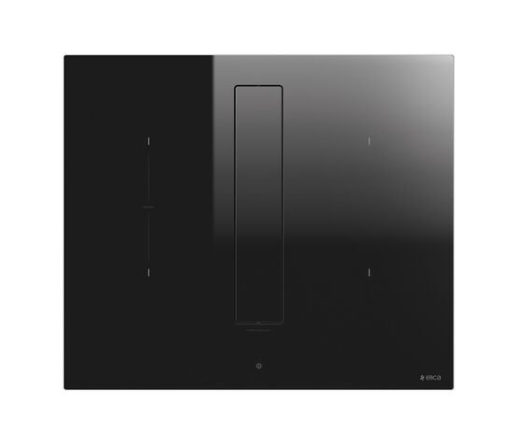

Can be built into 60-cm wide units without foregoing the hood performance, induction hob power, size and position of the base unit. The heart of the extraction unit is totally invisible and can be activated with a simple touch. The internal parts can be easily accessed to service the grease and odour filters.
Pack includes ducting to help duct the airflow out of the unit in which the aspirating hob is installed. (Some additional ducting may be required, depending on your installation requirements).
Dimensions:
60 x 51.5 x 24.5 cm (Cutout: 56 x 49cm)
Extractor Specifications:
Controls - 3S+2B slider touch control
Booster airflow - 620 m3/h
Suction speed - 5,1 m/s
Noise level min-max - 45 - 57 db(A)
Total absorption - 160 W
Hob Specifications:
Controls - 9P+B slider touch control
Absorption - 7,2 KW
Power limitation - 3,1 - 4,5 kW
Voltage - 220 - 240 V
Cooking zones (Size-Power):
1 200x180 mm - 2,1/3,0 kW
2 200x180 mm - 1,6/1,85 kW
3 Ø200 mm - 2,3/3,0 kW
4 Ø160 mm - 1,2/1,4 kW
Bridge zone - 1 left
